Alpha Construction
72,700 - 74,700 kg
385 kW

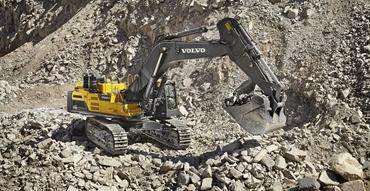

3.3 - 5.16 m³For ultimate performance and low fuel consumption, the EC750D crawler excavator gets the job done whether you're working at a mine, quarry or in heavy construction applications. The machine's engine delivers increased horsepower and fuel efficiency, while its electro hydraulic system provides excellent control for faster cycle times.
For ultimate performance and low fuel consumption, the EC750D crawler excavator gets the job done whether you're working at a mine, quarry or in heavy construction applications. The machine's engine delivers increased horsepower and fuel efficiency, while its electro hydraulic system provides excellent control for faster cycle times.
| Operating System | 72,700 - 74,700 kg |
|---|---|
| Gross power | 385 kW |
| ...at engine speed | 1,800 rpm |
| Bucket capacity | 3.3 - 5.16 m³ |
| Lifting capacity, along undercarriage | 26,110 kg |
| ...at reach / height | 6 / 1.5 m |
| Max. digging reach | 11,460 mm |
| Max. digging depth | 7,210 mm |
| Breakout force, SAE J1179 (Normal) | 325 kN |
| Tear out force, SAE J1179 (Normal) | 314 kN |
| Overall width | 4,290 mm |
| Tail swing radius | 4,140 mm |
| Operating System | 1,60,275 - 1,64,685 lbs |
|---|---|
| Gross power | 516 hp |
| ...at engine speed | 1,800 rpm |
| Bucket capacity | 4.3 - 6.75 yd³ |
| Lifting capacity, along undercarriage | 57,563 lbs |
| ...at reach / height | 20 / 5 ft |
| Max. digging reach | 37′ 7″ ft in |
| Max. digging depth | 23′ 8″ ft in |
| Breakout force, SAE J1179 (Normal) | 73,063 lbf |
| Tear out force, SAE J1179 (Normal) | 70,560 lbf |
| Overall width | 14′ 1″ ft in |
| Tail swing radius | 13′ 7″ ft in |
